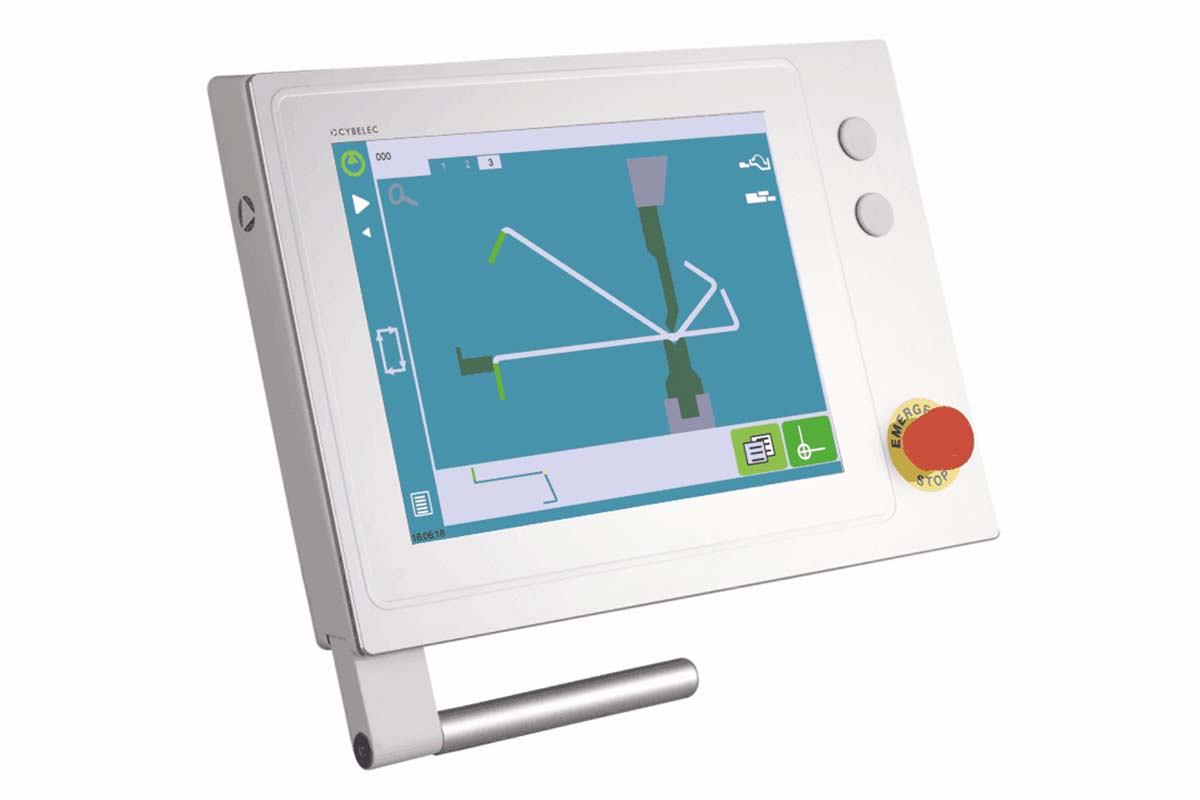

CYBELEC CybTouch 15 PS

CybTouch 15 PS is a 2D numerical control for entry to mid-range CNC press-brakes, featuring a 15” touchscreen in a horizontal design. It offers an intuitive user interface, large keys, online help, and many automatic functions to guide the operator. CybTouch 15 PS is available in a sleek housing or optionally as a robust panel.

Features
Specifications
Options
Models
Downloads

For the user:

• 15” modern streamlined glass surface touchscreen that can be used with gloves
• User friendly HMI thanks to intuitive programming and easy to set up with dedicated wizards (autotuning)
• 2D graphical profile drawing (Touch Profile) and precise 2D program creation
• Automatic bending sequence calculation
• Easy single bends thanks to the EasyBend page
• Wide storage capacity
• Internal backup and restore functions
• Wireless communication for extended diagnostics and updates (with laptop)

For the OEM:

• Auto-tuning: easy to set up with dedicated wizards
• 4 or 6 axes control in a compact housing
• Management of AC/DC drives and motors, frequency converters for AC asynchronous motors, two speeds mode and more
• Pressure, crowning and pump speed management
• Advanced algorithms for closed and open loop proportional valves control



CybTouch 15 PSe

CybTouch 15 PS

Screen

Glass surface touch screen (capacitive)
15” color graphic TFT screen, 1024 x 768 pixels with LED backlight control

Work memory

SRAM / SDRAM

System memory

8 GB and up Micro SD Card with firmware update via RFlink

Communication

Cybelec RFlink (radio frequency link)
USB port (for memory stick only)
RS232 port (communication with safety PLC)

X – R Axes

• ± 10VDC, management of AC/DC drives and motors
• 0-10 VDC, frequency converter for AC asynchronous • motors
• SP-SN-HS, 2 speeds mode
• SP-SN 0-10 VDC, 2 adjustable speeds

Units

inch/mm conversion

Power supplies

• Numerical control: stabilized + 24VDC -15% / + 20% 30W
• Digital inputs/outputs: stabilized + 24VDC -15% / + 20%

Encoder inputs

4 inputs, 5 VDC or 12 VDC* or 24 VDC* (* = externals power supply) Complementary signals are not necessary but recommended.

Power supplies for encoders

5 VDC, Supplied by CybTouch. Max. 250 mA for each encoder

Digital inputs

8 inputs, Optocoupled

16 inputs, Optocoupled

Analog inputs

2 inputs, 0-10 VDC

4 inputs, 0-10 VDC

Digital outputs

13 outputs, Optocoupled and short circuit proof
12 x 24 VDC source mode, max. 0.5 A
1 x 24 VDC auxiliary output, max. 0.5 A, not protected
Possibility to configure twice the same output to double the current.

21 outputs, Optocoupled and short circuit proof
12 x 24 VDC source mode, max. 0.5 A. 8 x 24 VDC source mode, max. 3.0 A
1 x 24 VDC auxiliary output, max. 0.5 A, not protected
Possibility to configure twice the same output to double the current.

Analog outputs

6 outputs (15 PSe), 7 outputs (15 PS)
±10 VDC, Y1-Y2-X-R, pressure / crowning.
Impedance < 100 Ω, short circuit proof.
Load ≥ 2 kΩ (max 15 mA)

Reference voltage

10 VDC, Impedance < 100 Ω, short circuit proof
Load ≥ 2 kΩ (max 15 mA)

Operating conditions

Min. 5° Celsius, max. 45° Celsius
Relative humidity 10 to 85% non-condensing

EC Directives

IEC61131-2

Available languages

Czech, Dutch, English, Finnish, French, German, Italian, Korean, Mandarin, Mandarin TW, Polish, Portuguese, Portuguese BR, Romanian, Russian, Spanish, Turkish

Options OFT-H3 Automatic bend sequence

Optional (can be purchased separately)

Included

S-OPT-RFLINK

RFlink USB key for PC including CybTouchTools software

Software options



S-OFT-H3

Automatic bend sequence for CybTouch 8 PS, 12 PS, 15 PSe

S-OFT-H5

Tandem management

S-OFT-LF

Lock function (working time restriction)

Valve amplifier
analog modules



S-CAH-VA6/1

Y1, Y2, with feedback

S-MVP-100/A1

Pressure valve amplifier

S-MSV-402/A1

Servo valve amplifier +/-350mA or +/-50mA

CybMVA for Y1, Y2



MVA-FA2

Y1, Y2, with current outputs for proportional valves, can manage LVDT feedback

MVA-AA2

Y1, Y2, with analog outputs for servo-valve (MSV 402 needed) or integrated amplifier

CybTouch 15 PSe

• CBT-154PSE/B, Touchscreen 15″, 4 axes (Y1, Y2, X, R), PS-2D, housing version
• CBT-154PSE/B/AB, Touchscreen 15″, 4 axes (Y1, Y2, X, R), PS-2D & ABS, housing
• CBT-154PSE/P, Touchscreen 15″, 4 axes (Y1, Y2, X, R), PS-2D, panel version
• CBT-154PSE/P/AB, Touchscreen 15″, 4 axes (Y1, Y2, X, R), PS-2D & ABS, panel

CybTouch 15 PS

• CBT-154PS/B, Touchscreen 15”, 4 axes (Y1, Y2, X, R), PS-2D, housing version
• CBT-154PS/P, Touchscreen 15″, 4 axes (Y1, Y2, X, R), PS-2D, panel version
• CBT-156PS/B (*), Touchscreen 15″, 6 axes (Y1, Y2, X, R, Z1, Z2), PS-2D, housing, RJ45 wire 7.5m
• CBT-156PS/P (*), Touchscreen 15″, 6 axes (Y1, Y2, X, R, Z1, Z2), PS-2D, panel, RJ45 wire 7.5m

(*) requires one CybMVA module for Y1, Y2
