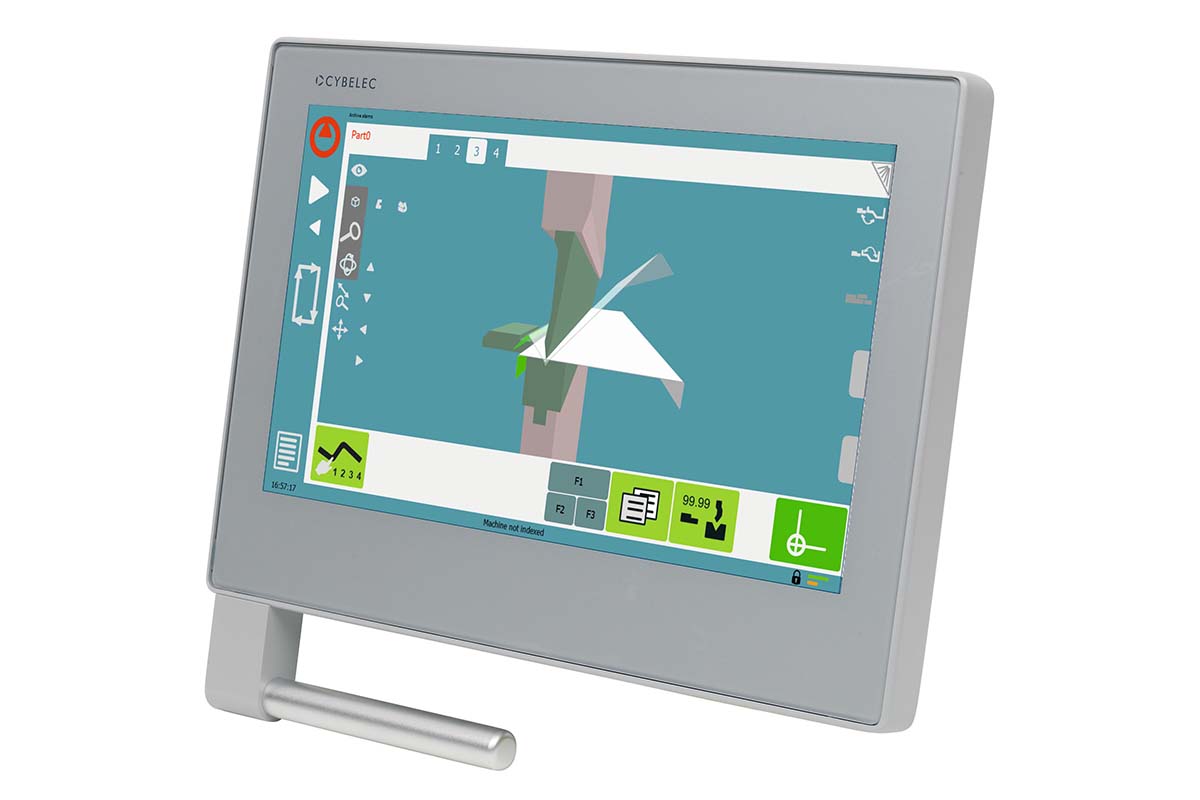

CYBELEC VisiTouch Pac

VisiTouch Pac is a numerical control for press brakes, featuring a 19” full touchscreen with a rear-mounted CNC board. It supports CANopen® and EtherCAT® for multi-axis control and offers 2D graphic profile drawing and 3D viewing. It interfaces with various hydraulic systems, I/O, and analog axes using CybMVA modules and is customizable for Industry 4.0 needs.

Features
Specifications
Options
Models
Downloads

For the user:

• Modern streamlined glass surface touchscreen that can be used with gloves
• User friendly HMI, thanks to intuitive programming
• 2D graphical profile drawing (Touch Profile) and 3D viewer
• Automatic bending sequence calculation
• Highest precision of bending thanks to sophisticated algorithms
• Tandem
• Tools import
• Group management for complex production
• Preliminary / Final bend
• Hemming management
• Running under Windows 10 for multitasking and networking
• Angle measurement
• Barcode reader
• Customizable Industry 4.0

For the OEM:

• Set up with dedicated wizards (auto-tuning).
• All kinematics available:
– For X, Xrelatives, Xslave, R, Rslave, and Z axes
– For Back and Front multiples gauges
– For bending aids
– Up to 26 axes
• Axes control through CANopen® and EtherCAT® with wide configuration compatibilities
• Customizable User Buttons for the machine operator
• Open system for customization
• Interactions with the beam through specific cycles to manage hybrid and electric press brakes
• Dynamic and regulated crowning cycles
• Plug-in for HMI part
• Communication protocol with arm robots for press brakes applications

TFT screen

18.5’’ wide TFT 16:9

Resolution

1366 x 768, 24 bits (WXGA)

Touchscreen

Glass PCAP Multi-touch 10 fingers

Seal

IP65 – front side only

Handle

Included

Operating conditions

Min. 5° Celsius, max. 40° Celsius. If the ambient temperature approaches or exceeds 40° Celsius, it is advisable to install special ventilation, or even air-conditioning.
Relative humidity (10 to 85% non-condensing)

EC Directives

IEC 61131-2

Operating System

Windows 10

Processor Unit

Model: Intel® Atom x5-E3940 Quad-Core @1.6GHz
Graphic: Intel® HD Graphics 500
RAM: 4 GB DDR
Cooling: Passive Heat sink, FAN less

Mass Storage

32 GB CFAST memory card SATA
16 GB eMMC

Display Interface

DVI, up to 1920×1600, single-link DVI-D interface
LVDS, up to 1920×1200, dual channel LVDS mode 18bpp or 24bpp

Communication

LAN: 1x Gigabit Ethernet, RJ-45 (10/100/1000)
USB: 4x USB (1x USB 3.1, 3x USB 2.0)
1x USB 2.0 (dedicated to local Touch-Screen)
COM: 1x RS-232C/RS-485 (D-sub 9-pin male, Data flow 115kbps)
Wi-Fi: USB compatible
4G-5G: USB compatible

Operating temperature

0 – 40°C

Power Supply (Numerical Control)

+24Vdc, @0.8A typ.(CN without I/O – X1 connector)

Power Supply (Digital I/Os)

+24Vdc, @ 20A max.

RTC – Calendar Clock

Battery: Lithium CR2032 / 3V @225mA/h

I/O Processor

ARM Cortex M7 series – STM32F765 @216MHz

Digital Input

6 inputs, 4mA typ. according to IEC61131-2 type 1 & 3
Isolation 2kV
Filtering – debouncing and deglitching (by step of 250µs)

Digital Output

4 outputs, 0.5A typ. /0.7A max. according to IEC61131-2 type 3 Isolation 2kV
Overvoltage and Short circuit protection
Status – output in fault and no 24V IO power supply

Fieldbus Interface

2 CANopen, 1Mbps CAN 2.0 A, RJ-45, CANopen Master/Slave
1 EtherCAT, 100Mbps EtherCAT, RJ-45, Master Stack

CANopen Compatible Drives

Baumüller, Delta Electronics, Infranor, INVT, Schneider, etc

Ethercat Compatible Drives

Delta Electronics, Infranor, Kollmorgen Europe Gmbh, OMRON, Panasonic, Yaskawa Electric, SanyoDenki Co., etc

Safety Systems Compatibilities

Fiessler, LazerSafe, Nuova Elettronica, Pilz, etc

Angle Measurement Systems

Protractors: IBR, Mitutoyo DMX, Mitutoyo U-wave
Real time Systems: DataM LaserCheck, Lazer Safe IRIS+, Wenglor, etc

Tool Locators

WILA Smart Tool Locator, PB Service, etc

Languages

Chinese (simplified and traditional), Czech, Dutch, English (reference language), Finnish, French, German, Italian, Polish, Portuguese (Brazil and Portugal), Russian, Slovenian, Spanish, Swedish, Turkish

Accessories



S-OPT-BTAUX-S/E

Auxiliary box

UPS-DP1

UPS system with battery, 24V DC, 3A

M-300-0013B

ALU spacer for VT and VP fixing

Software options



OFT-AX

Additional axis license

OFT-TM

Tandem management

OFT-BA

Bending aids and sheet support (require axes licenses)

OFT-SS

Sheet support (require axes licenses)

OFT-AM1

Automatic angle measurement (one station)

OFT-AM2

Automatic angle measurement (two stations)

Included

Protractor Angle

OFT-AT

Automatic thickness measurement

OFT-FS

Force sensor management

OFT-SC

Special crowning cycle (user cycle file added by customer)

OFT-TL

Tool locator

OFT-SB

Plugin for communication with Lazer Safe Smart Brackets

OFT-RCG

Plugin for comm. with arm robot (incl. OFT-BA and OFT-SS)

OFT-RCA

Robot control, Cartesian XYZAC (includes 5 axes licenses)

OFT-RAS

STEP Arm Robots control interface

OFT-BC

Plugin for communication with Barcode reader, generic

OFT-ST

Statistics

OFT-I4M

Industry 4.0, statistics, status (MES), communication (MES)

OFT-VA

AutoPOL CAM Viewer

OFT-PG

Authorization for plugin installed by customer

OFT-IMP

MX Import license, DXF flat, SW, IGES, STEP, SAT, X_T

PC offline software



OFT-VST-2

PC offline software VisiTouch (2D)

OFT-VST-MX

PC offline software VisiTouch MX

OFT-VST-MXIMP

PC offline software VisiTouch MX including Import

OFT-IMP-SLDPRT

SolidWorks import license, requires OFT-IMP license

OFT-EXP

DXF export license

• VSP-84PS-2, VisiTouch Pac, 4 axes (Y1, Y2, 2 axes), PS-2D
• VSP-84PS-2, VisiTouch Pac, 4 axes (Y1, Y2, 2 axes), PS-2D, panel version
