GIVI MISURE GVS 215

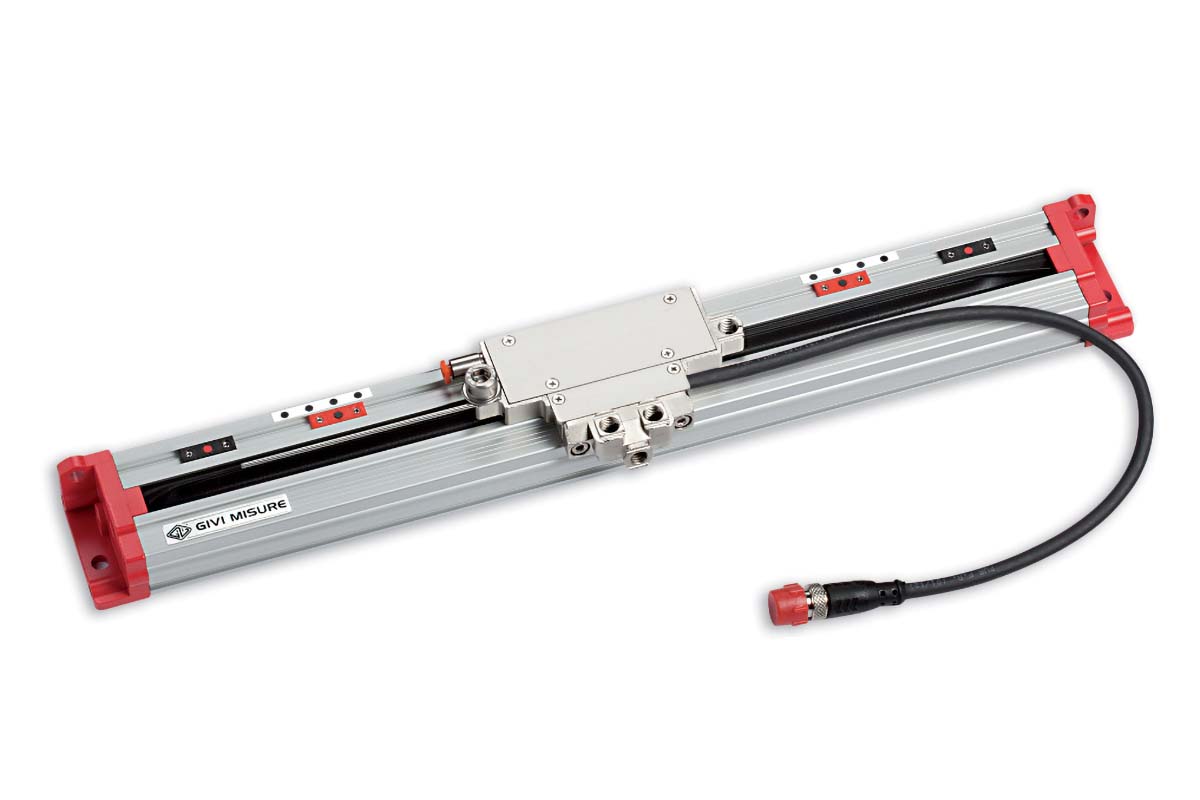

GIVI MISURE GVS 215 is a self-aligned incremental magnetic scale. Ideal for synchronised press brakes, it has a resolution of up to 1 μm. The scale is easily installed, thanks to its symmetric design and self-aligned carriage.
Self-aligned incremental magnetic scale:
• Magnetic incremental scale with pole pitch 2+2 mm. Particularly suitable for applications on synchronized press brakes.
• Reader head guided by a self-aligned and self-cleaning sliding carriage with spring system.
• Resolution up to 1 μm and repeatability ± 1 increment.
• Accuracy grade ± 15 μm.
• Selectable reference indexes every 10 mm along the entire measuring length, with Zero Magneto Set device.
• The adjustable cable output and the selectable zero references make the scale SYMMETRIC and applicable to both columns of the press brake.
• Safety limit switches, positionable at both ends.
• Sealing lips for the protection of the magnetic band, made of special elastomer resistant to oil and wearing.
• Various possibilities of application, with double-effect joint or steel wire. An adapter guarantees the compatibility with PBS-HR scale.
• High accuracy and stability of signals even in case of high speed, strong accelerations and vibrations.
• Moulded M12 connector (IP 67) or other models on request.
• Protected against inversion of power supply polarity and short circuits on output ports.
• GVS 215 T50, Resolution 50 µm – Zero Magneto Set
• GVS 215 T25, Resolution 25 µm – Zero Magneto Set
• GVS 215 T10, Resolution 10 µm – Zero Magneto Set
• GVS 215 T5, Resolution 5 µm – Zero Magneto Set
• GVS 215 T1, Resolution 1 µm – Zero Magneto Set
