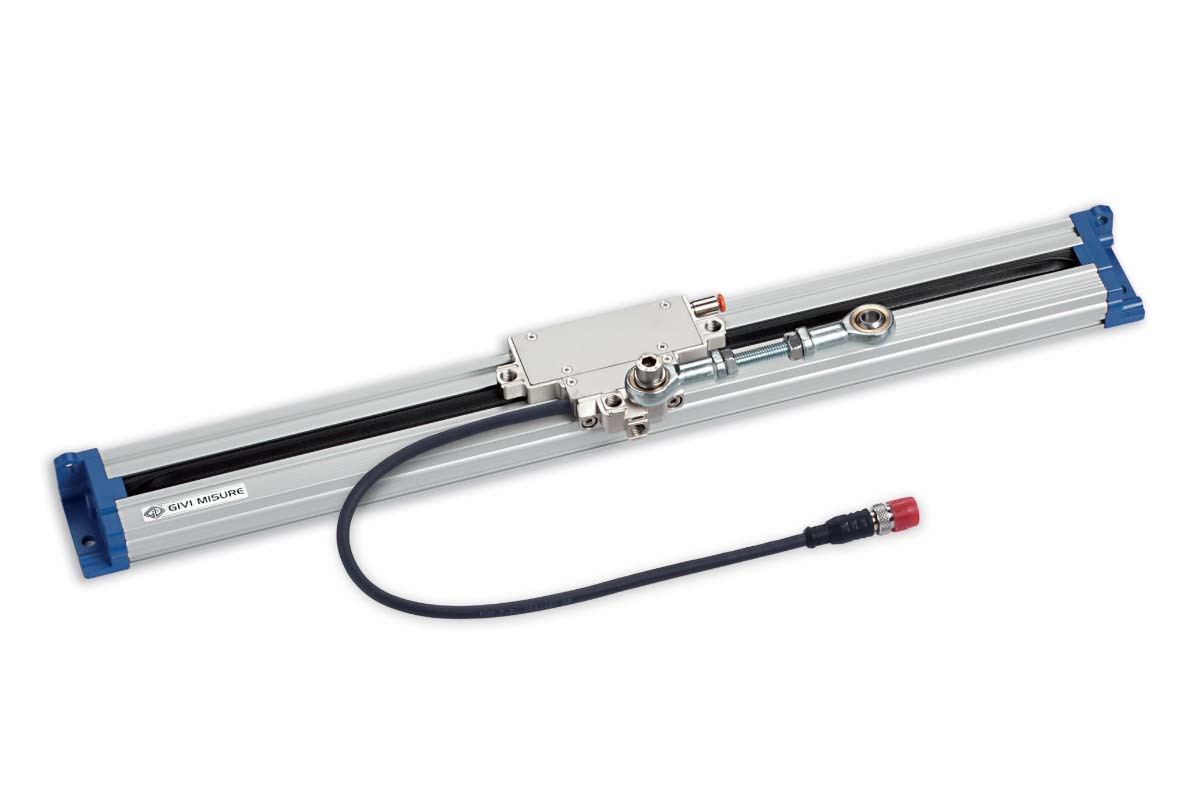

GIVI MISURE GVS 219
GIVI MISURE GVS 219 is a self-aligned absolute magnetic scale. It has a resolution of up to 1 μm. The scale is easily installed, thanks to its symmetric design and self-aligned carriage. Can be ordered in length up to 30’000 mm in its modular version.
Self-aligned absolute magnetic scale
• Magnetic scale with pole pitch 2+2 mm and direct reading of the absolute position. Particularly suitable for applications on synchronized press brakes.
• High-speed SSI-BiSS C (unidirectional) serial interface.
• Option: 1 Vpp analog signal.
• Reader head guided by a self-aligned and self-cleaning sliding carriage with spring system.
• Resolutions up to 1 μm and repeatability ± 1 increment.
• Accuracy grade ± 15 μm.
• Measuring length up to 30,000 mm in modular version.
• Profibus-DP, Profinet, CANopen, DeviceNet, ModBus and DRIVE-CLiQ protocols, through conversion gateways.
• Sealing lips for the protection of the magnetic band, made of special elastomer resistant to oil and wearing.
• Various possibilities of application, with double-effect joint or steel wire. An adapter guarantees the compatibility with PBS-HR scale.
• High stability and quality of signals even in case of high speed, strong accelerations and vibrations.
• Protected against inversion of power supply polarity and short circuits on output ports.
• GVS 215 T50, Resolution 50 µm – Zero Magneto Set
• GVS 215 T25, Resolution 25 µm – Zero Magneto Set
• GVS 215 T10, Resolution 10 µm – Zero Magneto Set
• GVS 215 T5, Resolution 5 µm – Zero Magneto Set
• GVS 215 T1, Resolution 1 µm – Zero Magneto Set
• GVS 215 T50, Resolution 50 µm – Zero Magneto Set
