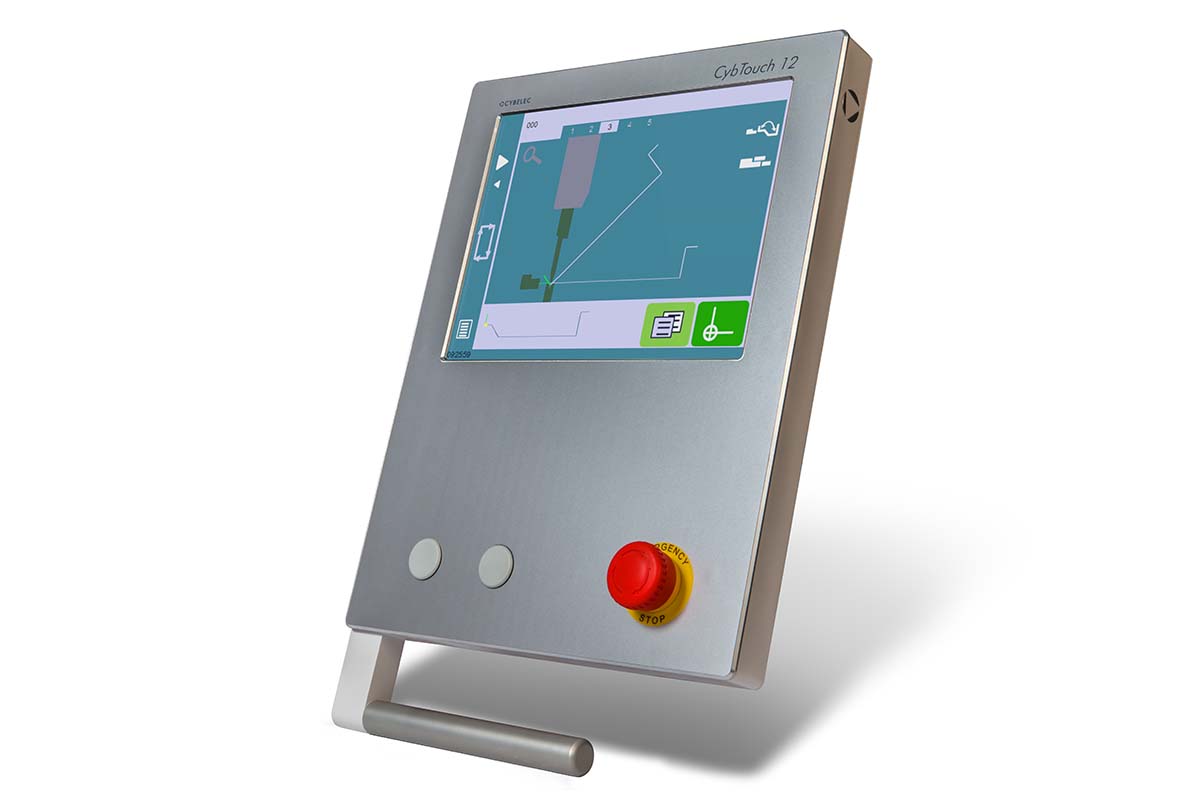

CYBELEC CybTouch 12 PS

CybTouch 12 PS is designed for synchronized press-brakes, featuring an 12” touchscreen. It’s intuitive user interface has a high integration of functions. With large keys, online help, user-friendly software, and automatic functions, CybTouch 12 PS is powerful and easy to use. Available in sleek housing for a swivelling arm or optionally as a robust panel.

Features
Specifications
Options
Models
Downloads

Easy Operating:
• Large 12” touchscreen, with vivid colors and high-contrast
• Hand drawing TouchProfile function
• Simple pages, clear display, large keys
• Intuitive and user-friendly interface
• Complete programming for efficient mass-production with multiple bends
• Easy single bends thanks to the EasyBend page
• Online help and interactive warning pop-up
• Comfortable wireless software updating and data back-up using PC or Notebook
• USB port for memory sticks
• Large selection of languages available

Better Bending:
• Various automatic calculations of bend functions
• Bending sequences and programs can be memorized
• Angle, pressure and crowning management
• Easy manual movement

Powerful:
• 4 axes control (Y1-Y2-X-R)
• TouchProfile 2D graphic part creation with manual sequencing
• Bend allowance calculation
• Pressure – crowning calculation
• Each part or bend can have its specific tools
• Punch depth calculation
• Angle and back gauge correction
• Delivered with PC-ModEva offline software



CybTouch 12 PS 20

CybTouch 12 PS 12

Screen

12” color graphic TFT screen, 800 x 600 pixels with LED backlight control

Work memory

SRAM /SDRAM

System memory

2 GB Micro SD Card with firmware update via RFlink

Communication

Cybelec RFlink (radio frequency link)
USB port (for memory stick only)
RS232 port (communication with safety PLC)

X – R axes

• ± 10VDC, management of AC/DC drives and motors
• 0-10 VDC, frequency converter for AC asynchronous motors
• SP-SN-HS, 2 speeds mode
• SP-SN 0-10 VDC, 2 adjustable speeds

Units

inch/mm conversion

Power supplies

• Numerical control: stabilized + 24VDC -15% / + 20% 30W
• Digital inputs/outputs: stabilized + 24VDC -15% / + 20%

Encoder inputs

4 inputs, 5 VDC or 12 VDC* or 24 VDC* (* = external power supply). Complementary signals are not necessary, but recommended

3 (+ 1) inputs, 5 VDC or 12 VDC* or 24 VDC* (* = external power supply). Complementary signals are not necessary, but recommended

Power supplies for encoders

5 VDC, Supplied by CybTouch. Max. 250 mA for each encoder

Digital inputs

16 inputs, Optocoupled

8 inputs, Optocoupled

Analog inputs

4 inputs, 0-10 VDC

2 inputs, 0-10 VDC

Digital outputs

21 outputs, Optocoupled and short circuit proof
12 x 24 VDC source mode, max. 0.5 A.
8 x 24 VDC source mode, max. 3.0 A
1 x 24 VDC auxiliary output, max. 0.5 A, not protected
Possibility to configure twice the same output to double the current.

13 outputs, Optocoupled and short circuit proof
12 x 24 VDC source mode, max. 0.5 A
1 x 24 VDC auxiliary output, max. 0.5 A, not protected.

Analog outputs

6 outputs, ±10 VDC, Y1-Y2-X-R, pressure and crowning
Impedance < 100 Ω, short circuit proof
Load ≥ 2 kΩ (max 15 mA)

Reference voltage

10 VDC, Impedance < 100 Ω, short circuit proof
Load ≥ 2 kΩ (max 15 mA)

Operating conditions

Min. 5° Celsius, max. 45° Celsius
Relative humidity 10 to 85% non-condensing

EC Directives

IEC61131-2

Available languages

English, Français, Deutsch, Italiano, Nederlands, Español, Português, Português Brasil, Český, Türkçe, 中文, 台灣, Polski, Pусский, Suomi

S-OPT-RFLINK

RFlink USB key for PC including CybTouchTools software

Software option



S-OFT-CBT/AB

Automatic bend sequencing

Valve amplifiers analog modules



S-CAH-CybVA6/1

Interface card for HOERBIGER proportional valves

S-MVP-100/A

Voltage / current conversion module (0-10V → 0-0.5 / 0-2 A) for pressure and crowning valves, to be fitted in the electric cabinet

S-MSV-402/A

Voltage / current conversion module (±10V → ±50 mA, ±300 mA) for servo-valves

• S-CBT-124PSA20/BW
• S-CBT-124PSA20/P
• S-CBT-124PSA12/BW
• S-CBT-124PSA12/P
